Product parameters

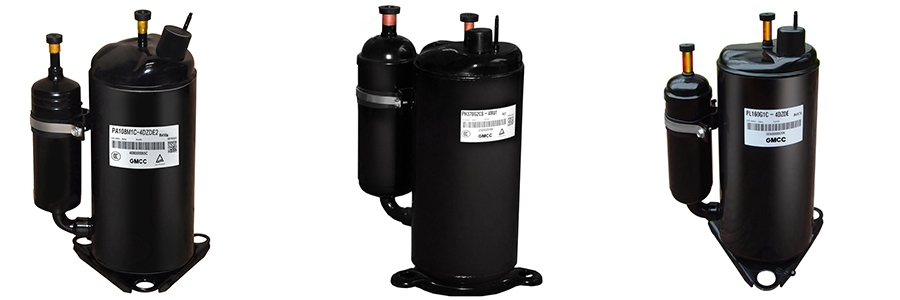

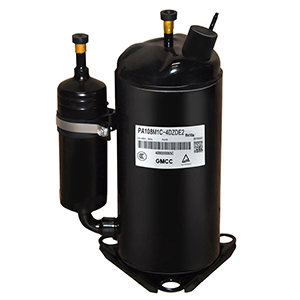

GMCC Rotary Compressor

R410A                                                                                                                          1φ-50Hz-220/240V

Model Displ. capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
ASN46V1VAZ1 4.6  1250 4265 320 3.90  15/370 238 8.1 9.8
ASN58V1VZZ1 5.8  1625 5545 411 3.95  20/370 238 8.1 9.8
ASM89V1VFZ 8.9  2485 8479 592 4.20  20/370 290 8.1 12.9
ASM93V11VDZ 9.3  2570 8769 615 4.18  25/370 290 8.1 9.8
ASM99V1VFZ 9.8  2780 9485 650 4.28  25/370 292 8.1 12.9
ASM103V11VDZ 10.3  2900 9895 675 4.30  25/370 292 8.1 9.8
ASM106V1VFT 10.6  3040 10372 710 4.28  25/370 292 8.1 12.9
ASM113V1VDZ 11.3  3215 10970 745 4.32  30/370 292 8.1 9.8
ASM120V1VFT 12.0  3445 11754 805 4.28  30/370 292 8.1 12.9
ASM125V1VFT 12.5  3610 12317 845 4.27  35/370 292 8.1 12.9
ASM130V1VDZ 13.0  3760 12829 885 4.25  35/370 292 8.1 9.8
ASM135V1VFT 13.3  3870 13204 900 4.30  35/370 295 8.1 12.9
ASM140V1VFT 13.9  4060 13853 945 4.30  35/370 292 8.1 12.9
PA150M2A-4FTL 15.0  4300 14672 1025 4.20  35/370 300 8.1 12.9
PA190M2AS-4KUL1 18.9  5460 18630 1270 4.30  45/370 340 8.1 12.9
PA190M2A-4EUL1 18.9  5480 18698 1290 4.25  45/370 325 8.1 12.9
PA200M2A-4EUL 19.9  5760 19653 1405 4.10  50/370 325 8.1 12.9
PA205M2AS-4MUL 20.4  5965 20353 1420 4.20  50/370 345 9.8 16.2
PA196G2C-4MUL 19.6  5665 19329 1335 4.24  55/400 310 9.8 16.2
PA206G2C-4KUL 20.8  5990 20438 1410 4.25  55/400 310 9.8 12.9
PA216G2C-4FTL 21.6  6165 21035 1440 4.28  55/400 310 9.8 12.9
PA231G2C-4MUL 23.1  6760 23065 1565 4.32  50/400 345 9.8 16.2
PA250G2CS-4MUL 25.1  7315 24959 1695 4.32  50/400 345 9.8 16.2
PA270G2CS-4MUL1 27.0  7845 26767 1805 4.35  60/400 345 9.8 16.2
PA280G2CS-4MUL 27.9  8165 27859 1898 4.30  60/400 345 9.8 16.2
PA290G2CS-4MUL 28.7  8485 28951 1975 4.30  60/400 345 9.8 16.2
ASG195V1VMU 19.6  5700 19448 1310 4.35  40/400 310 9.8 16.2
ASK40V11UAZ 4.0  930 3173 365 2.55  15/370 230 8.1 9.8
ASK60V1UAZ 6.0  1475 5033 542 2.72  25/370 230 8.1 9.8
ASN68V1UZZ1 6.8  1695 5783 585 2.90  20/370 250 8.1 9.8
ASN71V1UDD1 7.1  1735 5920 582 2.98  20/370 250 8.1 9.8
ASN76V1UDZ1 7.6  1890 6449 630 3.00  25/370 250 8.1 9.8
ASN82V1UDZ 8.2  2035 6943 690 2.95  25/370 250 8.1 9.8
ASN86V1UDZ 8.6  2140 7302 725 2.95  25/370 250 8.1 9.8
ASN89V1UDZ 8.9  2260 7711 765 2.95  25/370 250 8.1 9.8
ASM99V2UDZ 9.8  2395 8172 788 3.04  25/370 292 8.1 9.8
PA170M2C-4ET2 17.1  4190 14296 1385 3.03  35/400 300 8.1 12.9
PA185M2C-4FT2 18.5  4495 15337 1500 3.00  35/400 300 8.1 12.9
PA200M2A-4ET2 20.0  5000 17060 1695 2.95  40/370 314 9.8 12.9
PA215M2AS-4KU 21.5  5355 18271 1845 2.90  50/400 314 9.8 12.9
PA225M2CS-4KU2 22.4  5500 18766 1835 3.00  50/370 340 8.1 12.9
PA240M2CS-4KU1 23.9  5840 19926 1980 2.95  50/370 340 8.1 12.9
PA260G2C-4FU 26.0  6500 22178 2130 3.05  65/400 310 9.8 12.9
PA270G2CS-4MU1 27.0  6825 23287 2235 3.05  60/400 345 9.8 16.2
PA290G2CS-4MU1 28.7  7295 24891 2410 3.03  50/400 345 9.8 16.2
ATQ375V1UMU 37.7  9615 32806 3255 3.05  75/400 405 9.8 16.2
ATQ390V1UMT 38.9  9825 33523 3190 3.08  70/400 405 9.8 16.2



R410A                                                                                                                         1φ-60Hz-208~230V

Model Displ. Capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
ASN53N1UAJ3 5.3  1570 5357 520 3.02  15/370 230 8.1 9.8
ASN58N11VDZ1 5.8  1965 6705 510 3.85  15/370 250 8.1 9.8
ASN68N1UDZ 6.8  2060 7029 676 3.05  20/370 250 8.1 9.8
ASN68N2VDZB1 6.8  2320 7916 568 4.08  20/370 250 8.1 9.8
ASN76N1VDZ1 7.6  2600 8871 650 4.00  20/370 250 8.1 9.8
ASN82N1UDZ 8.2  2515 8581 853 2.95  25/370 250 8.1 9.8
ASN82N2VDZ1 8.2  2815 9605 690 4.08  20/370 250 8.1 9.8
ASN84N1VBZB1 8.3  2865 9775 695 4.12  20/370 250 8.1 9.8
ASN89N1UDZ 8.9  2730 9315 895 3.05  25/370 250 8.1 9.8
ASM103N11UFZ 10.3  3075 10492 975 3.15  35/370 297 8.1 12.9
ASM103N11VEZ 10.3  3565 12164 838 4.25  35/370 290 8.1 12.9
ASM106N1UFT 10.6  3200 10918 1015 3.15  35/370 297 8.1 12.9
ASM106N1VEZ 10.6  3680 12556 860 4.28  35/370 297 8.1 12.9
ASM113N1UFZ 11.3  3380 11533 1073 3.15  40/370 292 8.1 12.9
ASM120N1VDZ 12.0  4160 14194 990 4.20  40/370 292 8.1 9.8
ASM130N1UDZ 13.0  3870 13204 1270 3.05  40/370 292 8.1 9.8
ASM135N1UEZ 13.3  4060 13853 1290 3.15  40/370 297 8.1 12.9
ASM140N1UFT 13.9  4175 14245 1355 3.08  40/370 292 8.1 12.9
PA140M2A-3ET 13.9  4155 14177 1375 3.02  45/400 299 8.1 12.9
PA150M2AS-3KU 15.0  4500 15354 1450 3.10  45/370 321 8.1 12.9
ASF155N1VKP 15.5  5420 18493 1260 4.30  45/400 340 8.1 12.9
PA155M2A-3ETL1 15.7  5395 18408 1250 4.32  45/370 303 9.8 12.9
ASF160N1UEP 16.0  4865 16599 1530 3.18  55/400 314 9.8 12.9
PA160M2A-3ETL 16.0  5630 19210 1325 4.25  45/400 303 9.8 12.9
ASF165N02UFT 16.5  5000 17060 1670 3.00  40/370 340 9.8 12.9
PA165M2A-3ETL 16.5  5760 19653 1355 4.25  45/400 303 9.8 12.9
PA170M2A-3FT1 17.1  5155 17589 1662 3.10  45/370 303 9.8 12.9
ASF200N1UKP 19.9  5930 20233 1900 3.12  55/400 340 9.8 12.9
PA216G2C-3KU 21.5  6620 22587 2150 3.08  60/400 310 9.8 12.9
PA226G2C-3MT 22.3  6790 23167 2220 3.06  60/400 310 9.8 16.2
PA225M2A-3MTU1 22.4  6715 22912 2240 3.00  55/370 322 9.8 16.2
ASG235N1VMT 23.5  8350 28490 1920 4.35  40/400 310 9.8 16.2
PA240M2A-3MTU2 24.0  7220 24635 2475 2.92  55/370 322 9.8 16.2
PA241G2C-3MT3 24.0  7300 24908 2315 3.15  60/400 310 9.8 16.2
PA290G2CS-3MU 28.7  8870 30264 2880 3.08  60/400 344 9.8 16.2
ATG330N1UMU 32.7  10080 34393 3365 3.00  65/400 400 9.8 16.2
ASQ330N1UMU 33.1  9950 33949 3230 3.08  60/400 380 9.8 16.2



R22                                                                                                                              1φ-60Hz-208~230V

Model Displ. Capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
HSN76N1UZJ1 7.6  1645 5613 530 3.10  15/370 240 8.1 9.8
HSM130N12UEZ 13.0  2750 9383 846 3.25  30/370 292 8.1 12.9
HSM165N11UEZ 16.5  3500 11942 1060 3.30  40/370 292 8.1 12.9
HSM170N2UFZ 16.9  3540 12078 1115 3.17  40/370 292 8.1 12.9
PH210M2A-3FT 20.9  4610 15729 1365 3.38  45/370 292 8.2 12.9
PH250M2A-3FTU2 24.8  5285 18032 1625 3.25  40/370 292 8.2 12.9
PH260M2AS-3KUU1 26.1  5625 19193 1815 3.10  40/370 333 9.8 12.9
PH300G2C-3KU 29.8  6465 22059 1900 3.40  55/400 310 9.8 12.9
PH310G2C-3KUU 30.8  6780 23133 2085 3.25  55/400 310 9.8 12.9
PH340G2C-3MUU 33.8  7400 25249 2275 3.25  55/400 310 9.8 16.2
PH360G2C-3KUU1 36.0  7775 26528 2550 3.05  55/400 310 9.8 12.9
PH370G2C-3MUU1 37.0  8110 27671 2655 3.05  55/400 310 9.8 16.2
HSN98N2VBZ1 9.8  2305 7865 560 4.12  20/370 250 8.1 9.8
HSN102N1VDZ 10.2  2415 8240 575 4.20  15/370 255 8.1 9.8
HSM145N2VDT 14.6  3480 11874 830 4.19  35/370 292 8.1 9.8



R22                                                                                                                               1φ-50Hz-220/240V

Model Displ. capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
HSM135V1UDZ 13.3  2335 7967 708 3.30  25/370 292 8.1 9.8
HSM145V1UFZ 14.6  2568 8762 783 3.28  25/370 292 8.1 12.9
HSM150V5UFZ 15.1  2640 9008 800 3.30  25/370 292 8.1 12.9
HSM155V1UFZ 15.3  2665 9093 815 3.27  25/370 292 8.1 12.9
HSM160V5UFZ 15.8  2755 9400 840 3.28  25/370 292 8.1 12.9
HSM165V1UFZ 16.4  2845 9707 870 3.27  30/370 292 8.1 12.9
HSM165V3UDZ 16.4  2855 9741 915 3.12  30/370 292 8.1 9.8
HSM170V1UFZ 16.9  2920 9963 885 3.30  30/370 292 8.1 12.9
HSM190V1UFT 19.2  3340 11396 1010 3.31  35/370 300 8.1 12.9
HSM195V1UFT 19.7  3400 11601 1045 3.25  35/370 300 8.1 12.9
HSM200V1UFT 20.1  3480 11874 1070 3.25  35/370 300 8.1 12.9
HSM205V1UFT 20.5  3510 11976 1090 3.22  35/370 300 8.1 12.9
HSM210V2UFT 20.9  3650 12454 1170 3.12  35/370 300 8.1 12.9
HSM215V3UFT 21.4  3710 12659 1195 3.10  35/370 300 8.1 12.9
HSM220V3UFT 22.3  3880 13239 1220 3.18  40/370 300 8.1 12.9
PH300G2C-4KU1 29.8  5340 18220 1645 3.25  55/400 297 9.8 12.9
PH310G2C-4KUA 30.8  5440 18561 1635 3.33  55/400 310 9.8 12.9
PH330G2C-4KU 32.8  5845 19943 1745 3.35  60/400 324 9.8 12.9
PH340G2C-4KU 33.7  6050 20643 1805 3.35  60/400 324 9.8 12.9
PH360G2C-4MU1 36.0  6475 22093 2005 3.23  50/400 324 9.8 16.2
PH370G2CS-4MU1 37.0  6650 22690 2065 3.22  50/400 324 9.8 16.2
PH400G2CS-4MU1 39.8  7100 24225 2255 3.15  50/400 354 9.8 16.2
PH420G2CS-4KU1 42.3  7420 25317 2390 3.10  50/400 354 9.8 12.9
PH440G2CS-4MU 43.5  7810 26648 2390 3.27  50/400 354 9.8 16.2



T3-Tropical Condition

R22                                                                                                                              1φ-50Hz-220/240V

Model Displ
(cm3/rev)		 capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
w Btu/h
PH200M2A-4FTS1 19.9  3555 12130 1095 3.25  35/370 292 8.2 12.9
PH210M2A-4FTS2 20.9  3765 12846 1160 3.25  35/370 292 8.2 12.9
PH310M2AS-4KTS1 31.0  5620 19175 1755 3.20  50/370 348 9.8 12.9
HSG290V1TKT 29.0  5200 17742 1520 3.42  50/400 310 9.8 12.9
HSG310V1TKT 30.9  5540 18902 1630 3.40  45/400 324 9.8 12.9
PH400G2CS-4KTS1 39.8  7080 24157 2250 3.15  60/400 354 9.8 12.9
PH420G2CS-4KTS1 42.3  7540 25726 2370 3.18  60/400 354 9.8 12.9



R22                                                                                                                                      1φ-60Hz-230V

Model Displ
(cm3/rev)		 capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
w Btu/h
PH185M2A-3FTS1 18.5  4050 13819 1245 3.25  40/370 292 8.2 12.9
PH240M2A-3FTS1 24.0  5260 17947 1740 3.02  40/370 292 8.2 12.9
PH260M2AS-3KTS2 26.1  5680 19380 1765 3.22  40/400 333 9.8 12.9
PH280M2AS-3KTS1 27.9  6085 20762 2025 3.00  40/400 333 9.8 12.9



DC Inverter Single Cylinder

R410A

Model Displ
(cm3/rev)		 capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
w Btu/h
ASK75D43UEZ 7.5  2225 7592 582 3.82  - 238 8.1 9.8
ASK89D53UEZ 8.9  2670 9110 688 3.88  - 258 8.1 9.8
ASK98D50UFZ 9.8  2930 9997 768 3.82  - 260 8.1 9.8
ASK103D53UFZ 10.3  3120 10645 805 3.88  - 258 8.1 12.9
ASK103D59UFZ 10.3  3120 10645 790 3.95  - 260 8.1 12.9
ASK103D33UEZ3 10.3  3130 10679 786 3.98  - 260 8.1 12.9
ASK103D43UEZ3 10.3  3130 10679 779 4.02  - 260 8.1 12.9
